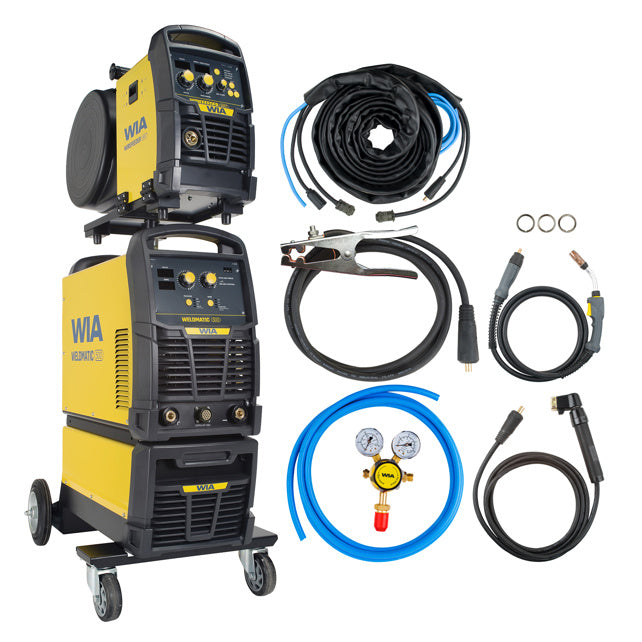

WELDMATIC 500 PACKAGE

The Weldmatic 500 is a powerful and robust multi-process machine built to perform for professional fabrication applications. Capable of MIG, TIG, and Stick welding, it offers optimal weld characteristics that provide high quality results.

Featuring Digital Volt and Amp meters, the 500 allows for easy and precise set up by retaining last weld information. Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 500 offers reliability and performance that’s second to none.

• 500 A three phase MIG, Stick & TIG welder
• 500 A at 40 V 60% Duty Cycle
• Digital Meters - Easy to read and easy to adjust parameters
• Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
• Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
• Spot Timer - Provides short weld times for repetitive spot welds
• Creep Mode - Provides slow wire speed until weld starts - ideal for aluminum starts
• Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
• Suitable wires - Gas-shielded and gasless flux-cored wires
• Spool capacity - Takes 5kg and 15kg spools
• VRD (Voltage Reduction Device)
• IP21S rated
• Generator compatible - 35 kVa

Three Phase

32 Amp Plug

VRD

Voltage Reduction Device

IP21S Rated

Built-In Thermal Protection

Prevents the machine from operating beyond its safe thermal zone.

Multi-Process Welding

MIG, Stick and TIG weld with this all in one machine.

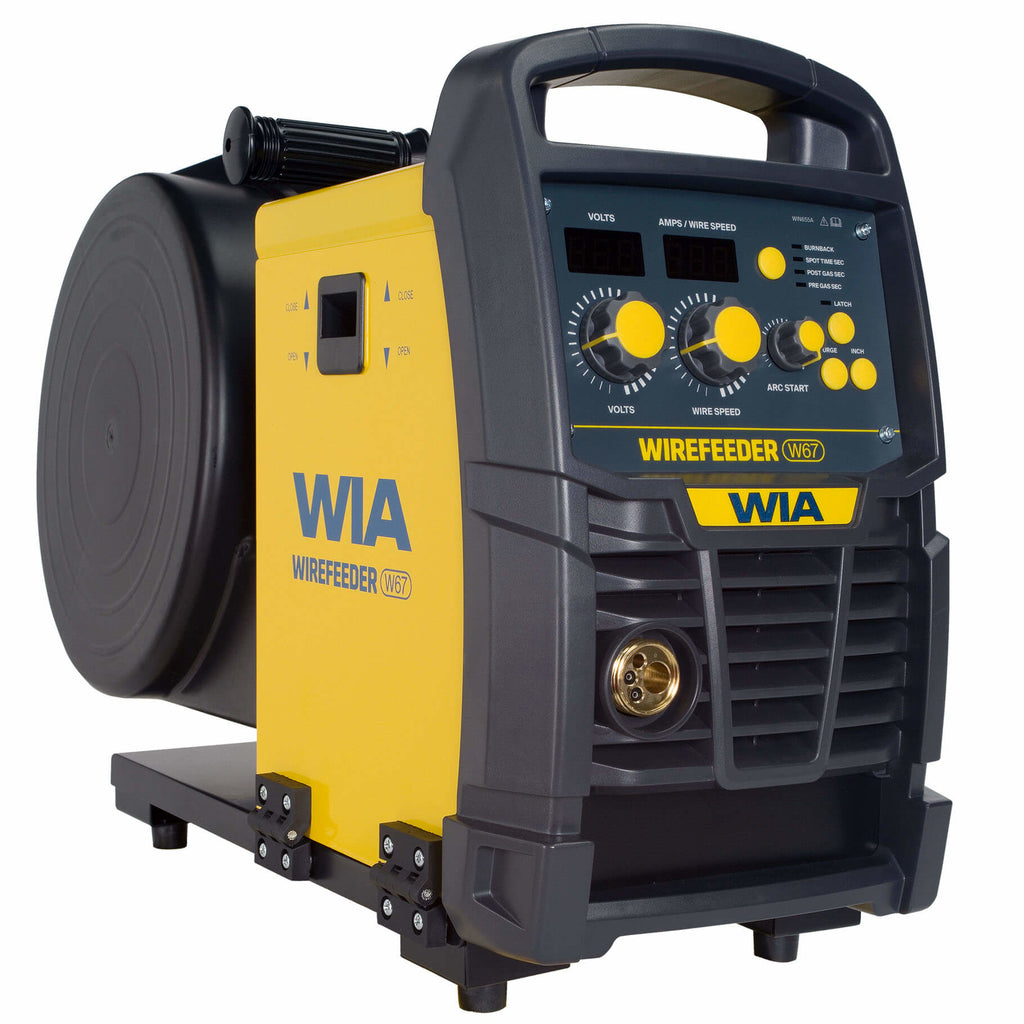

Separate Wirefeeder

Takes 5kg and 15kg spools. Suits both gas shielded and gasless wires. A separate wire feeder provides extra maneuverability around the workshop for spaces that won't allow machines access. Perfect for welding at heights or small spaces.

Heavy Duty Four Geared Wire Drive

With large and strong gears and ball bearings for extra reliability and performance.

Burnback

Controls how far the wire burns back to the tip on completion of the welding operation.

3 Year Warranty

SPECIFICATIONS

Primary Voltage	Rated Primary Current	Max. Primary Current	Recommended Generator KVA	Supply Plug	IP Rating	Weight	Standards Compliance
380/415 VAC – 50/60 Hz	32 Amps	40  Amps	35 kVA	32 Amp	IP21S	105kg	AS60974.1 & AS1674.2 (VRD)

MIG SPECIFICATION

Output Range	Rated Output @ 40°C (10min)	Wire Size Range	Material Thickness Range
30A/15.5V-500A/23V	500A/39V @60% 387A/33.4V @100%	0.6/0.8/0.9mm/1.2mm	Welds up to 12mm+ steel plate, single pass

STICK SPECIFICATION

Current Range	Rated Output @ 40°C (10min)
25A/21V-500A/40V	500A/40V @60% 387A/35.5V @100%

TIG SPECIFICATION

Current Range	Rated Output @ 40°C (10min)
15A/10.6V-500A/30V	500A/30V @60% 387A/25.5V @100%
