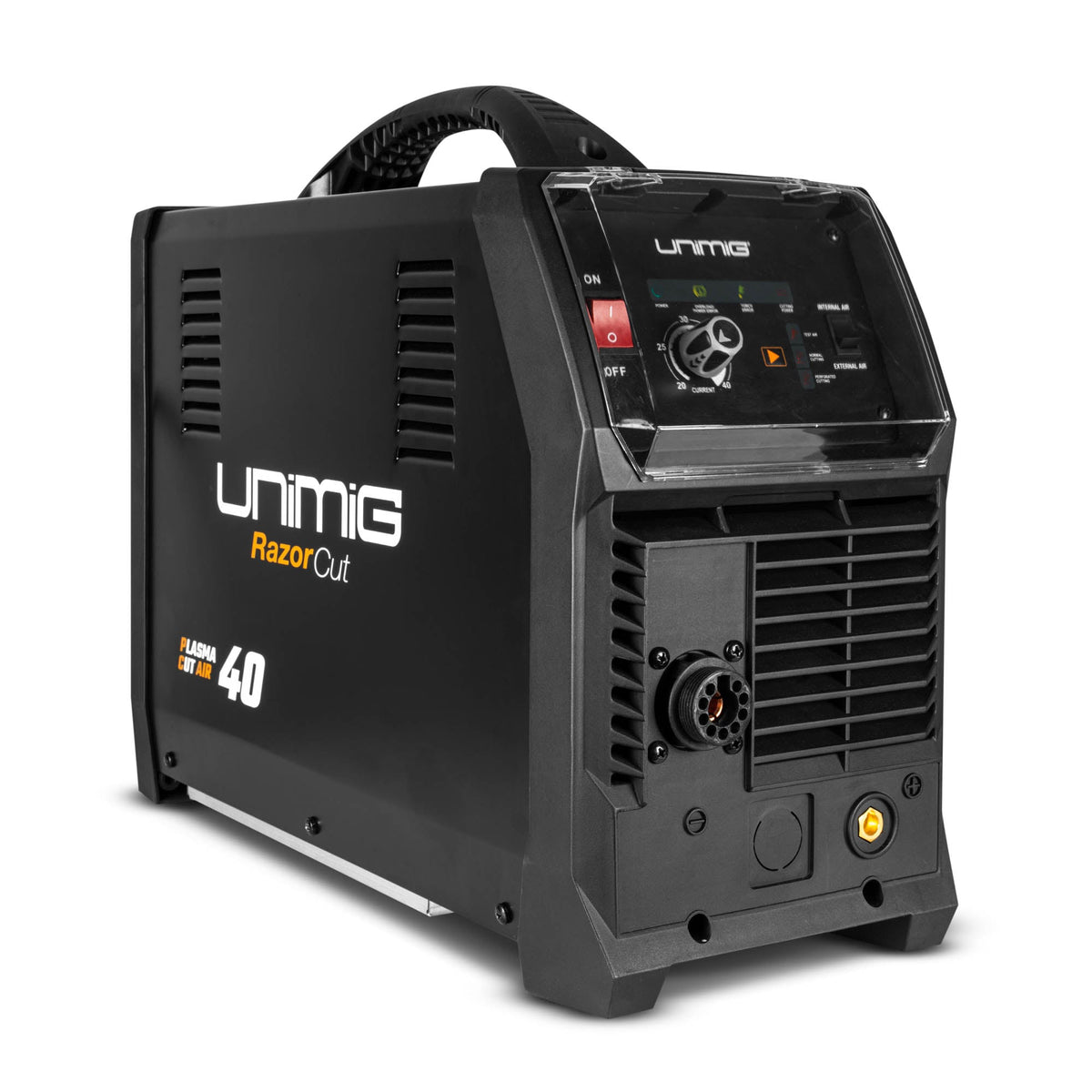

RAZOR CUT 40 AIR PLASMA CUTTER
The RAZOR™ CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 40 AIR boasts some serious cutting power with 10mm clean-cut and 12mm severance on the built-in air compressor, and 16mm clean-cut and 20mm severance on an external compressor.

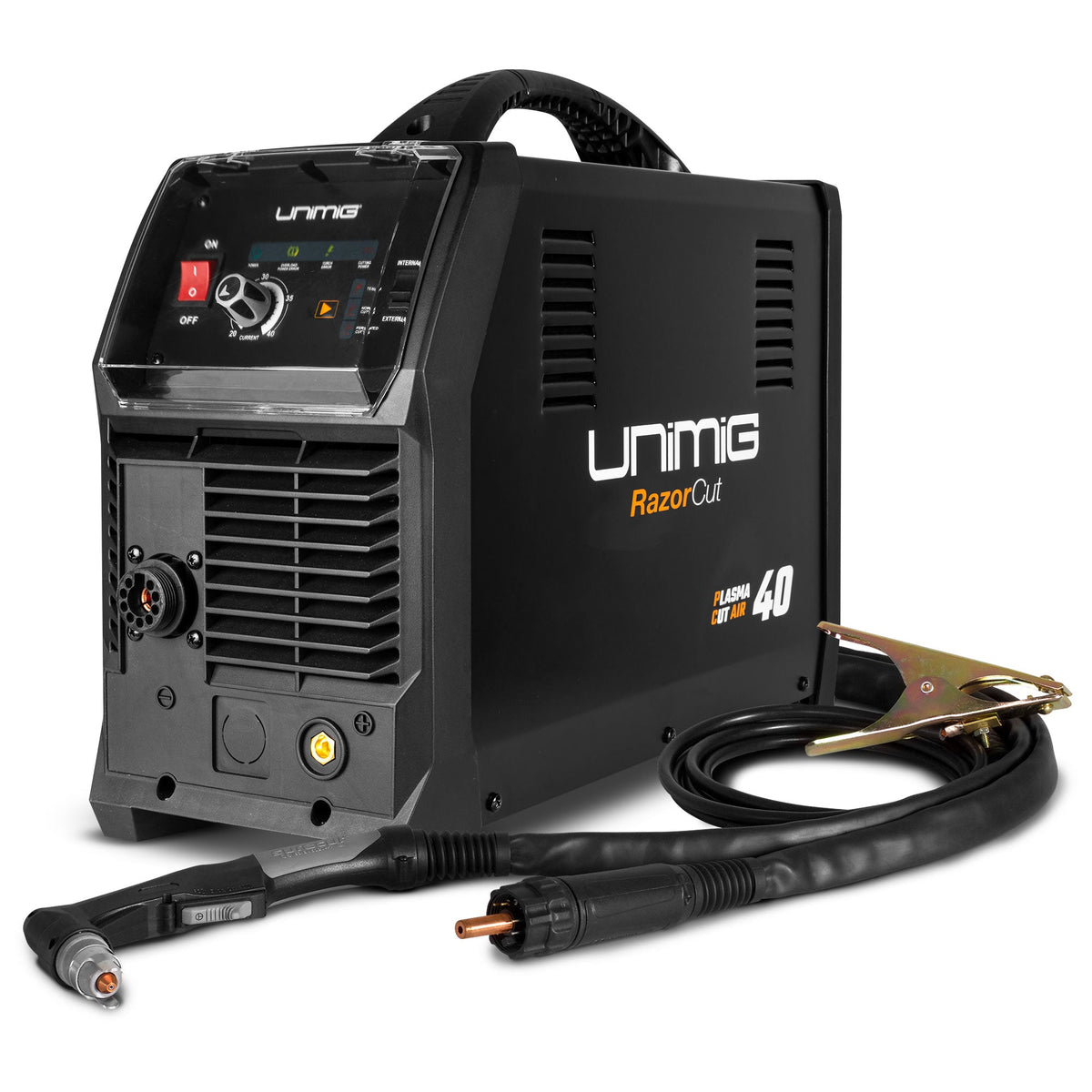

PACKAGE INCLUDES
- RAZOR™ CUT 40 AIR Plasma Cutter
- 6m SC80 Plasma Torch
- 4m 300 AMP Earth Clamp
- Air Regulator
- Operating Manual
BUILT-IN AIR COMPRESSOR
ALSO CAN BE CONNECTED VIA EXTERNAL AIR.
15 AMP PLUG
CONNECT TO ANY 15 AMP OUTLET.
PILOT ARC START
START CUT WITHOUT DIRECT CONTACT.
PERFORATED CUTTING MODE
CUTS BOTH SOLID MATERIAL AND PERFORATED MATERIALS WITH EASE.
BUILT-IN AIR COMPRESSOR
The RAZOR CUT 40 AIR comes with a built-in air compressor, giving you more flexibility with a plasma cutter than ever before. Connect an external air compressor for even greater cutting power.
PERFORATED CUTTING MODE
Cuts both solid material and perforated materials with ease.
PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
FEATURE VIDEO
Check out all of the features on the RAZOR™ CUT 40 AIR Plasma Cutter.
MACHINE SPECIFICATIONS
240V Single Phase
15 AMP
7.2
15
96V
210
IP21
H
10.0
10/25
AS/NZ60974-1
3
SIZE & WEIGHT
610x215x420mm
18kg
PLASMA CUT SPECIFICATIONS
20-40A
25% @ 40A / 60% @ 26A / 100% @ 20A
12mm (INTERNAL) / 16mm (EXTERNAL)
14mm (INTERNAL) / 18mm (EXTERNAL)
6mm (INTERNAL) / 8mm (EXTERNAL)
8mm (INTERNAL) / 10mm (EXTERNAL)
6mm (INTERNAL) / 8mm (EXTERNAL)
8mm (INTERNAL) / 10mm (EXTERNAL)
120
5.17 (75 psi)
Pilot Arc
Here you’ll find the latest manuals, guides & product/parts information.
UNIMIG is pleased to offer a 3-year warranty on all RAZOR™ Machines*.
UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well.UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.
UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.
*Please note warranty only applies to the power source only
