Description

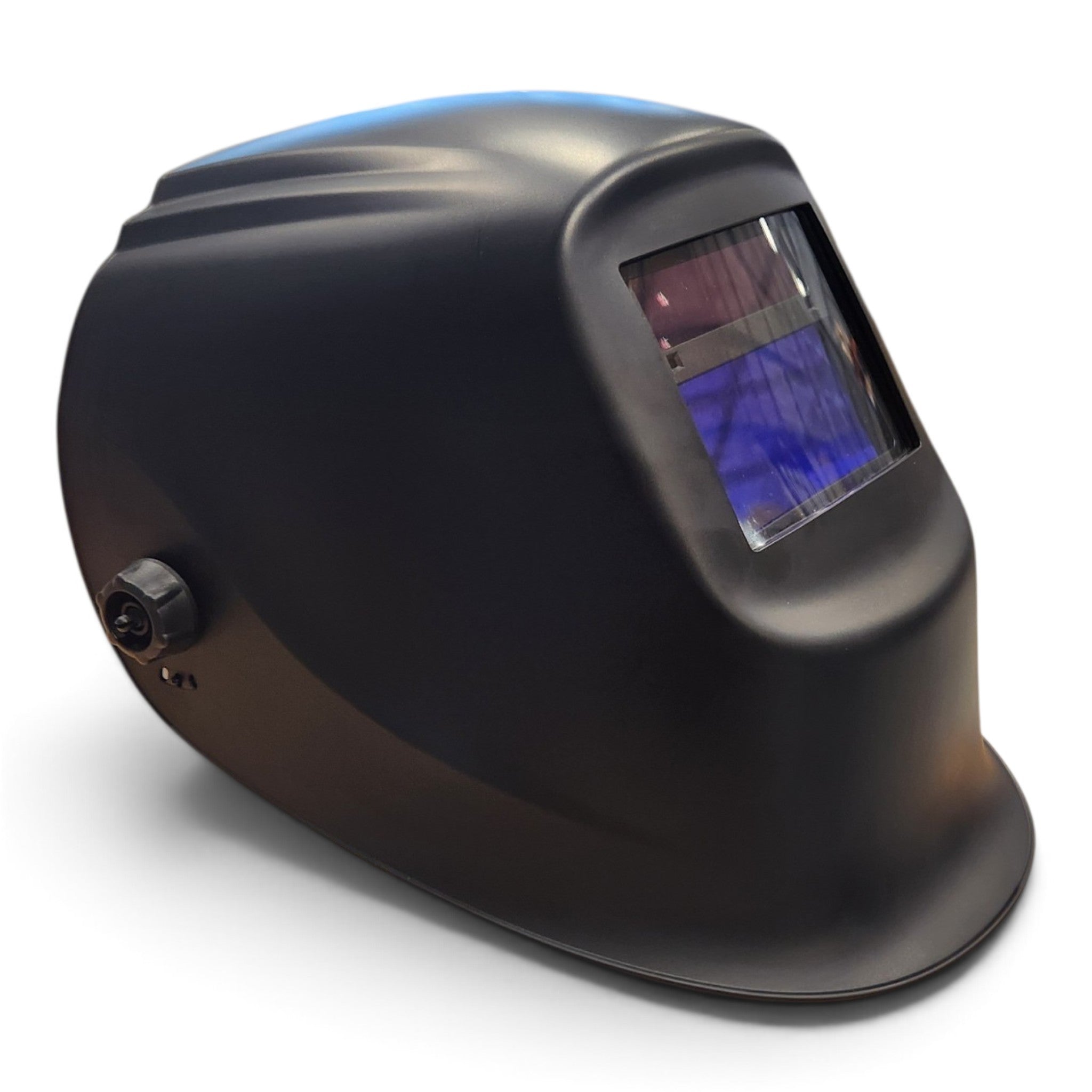

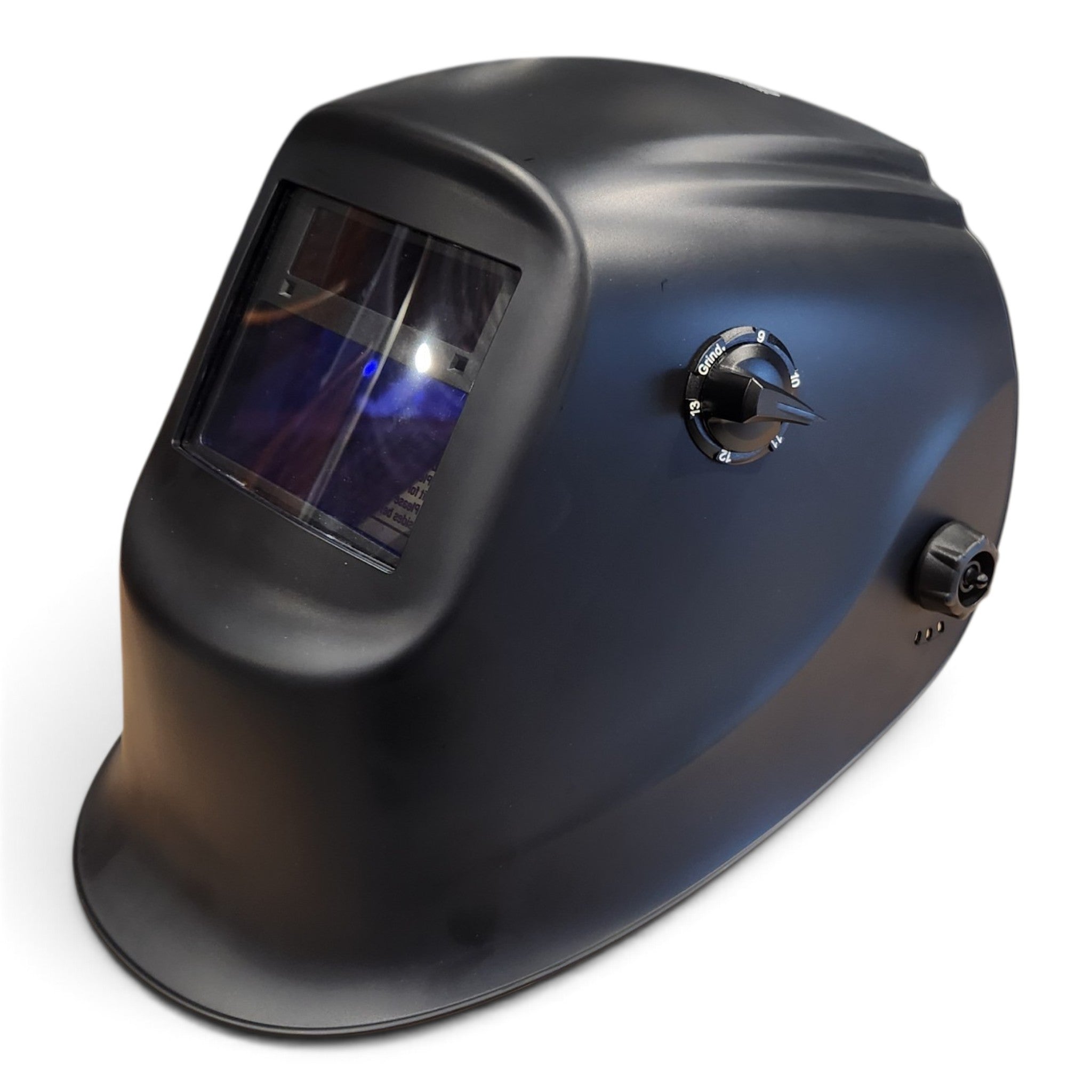

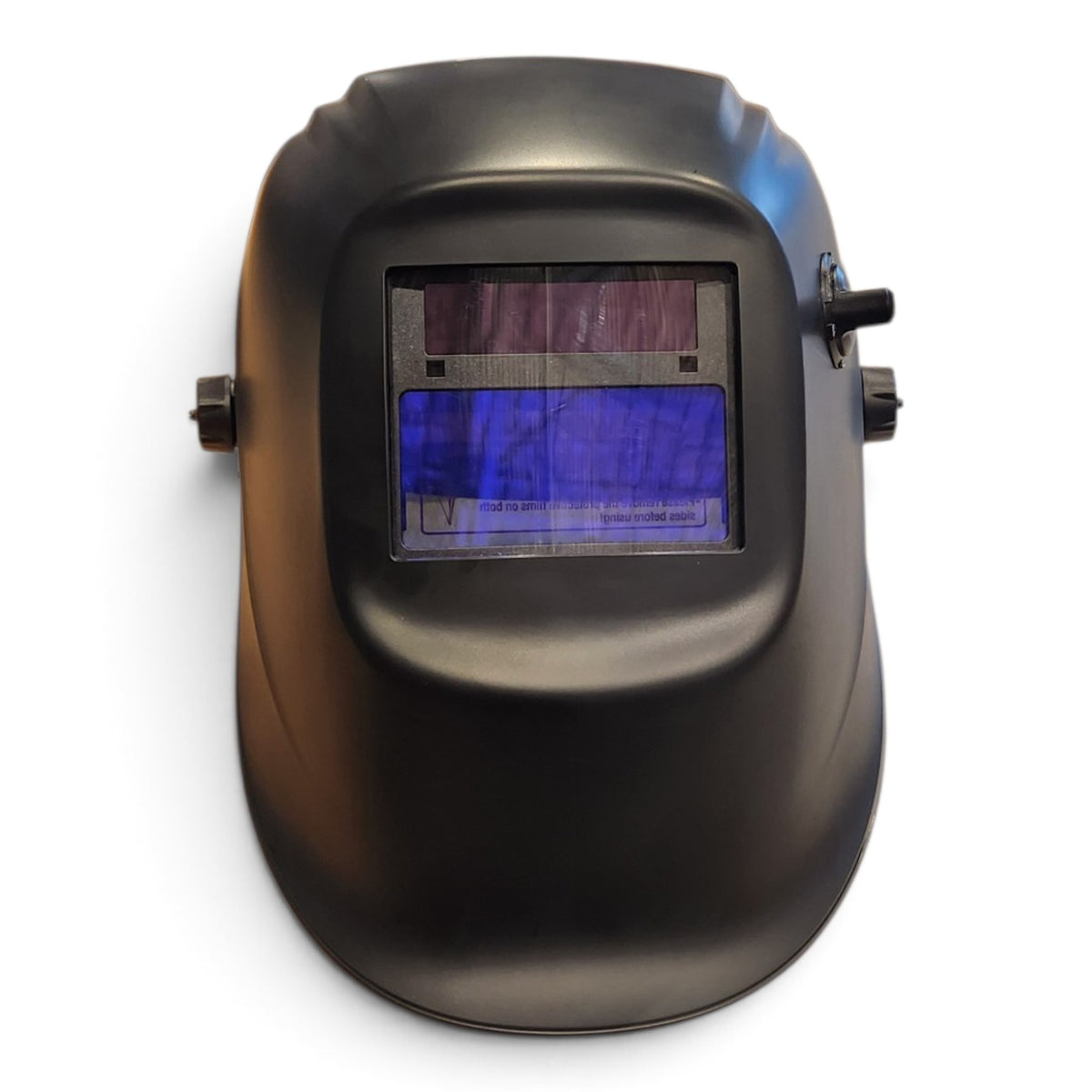

STAFFORD INDUSTRIAL AUTO DARKENING HELMET BLACK
SKU: SWPM101
Variable Shade and Delay Controls
- 9-13 Variable Shade Control
- 97mm x 47mm (3.82" x 1.85") Viewing Area
- External, Variable Shade
- Fully Automatic
- Switching time 1/12,500 seconds
- Solar cell with replaceable Battery
- Light weight
- Comfortable
- 1 Year Warranty
Technical Specifications:
| Optical Class: | 1 / 1 / 1 / 2 |
| Viewing Area: | 97mm x 47mm (3.82" x 1.85") |
| Cartridge Size: | 110 x 90 x 9 mm (4.33" x 3.54" x 0.35") |
| Arc Sensor: | 2 |
| Light State: | Shade 3 |
| Dark State: | Variable Shade 9 ~ 13 |
| Shade Control: | External, Variable Shade |
| Power On/Off: | Fully Automatic |
| UV/IR Protection: | Up to Shade DIN16 at all times |
| Power Supply: |
Solar cell with replaceable Battery |
| Switching Time: | 1/12,500 s. from Light to Dark |
| Low Amperage TIG Rated: | >5amps (DC), >5amps (AC) |
| Operating Temp: | -10°C ~ +55°C (14°F ~ 131°F) |
| Storing Temp: | -20°C ~ +70°C (-4°F ~ 158°F) |
| Helmet Material: | High Impact Resistance Nylon |
| Total Weigh: | 435 g |
| Application Range: | MIG; MAG/CO2; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); TIG; Grinding |
| Approved: | CE EN ISO 16321, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1, EAC |
