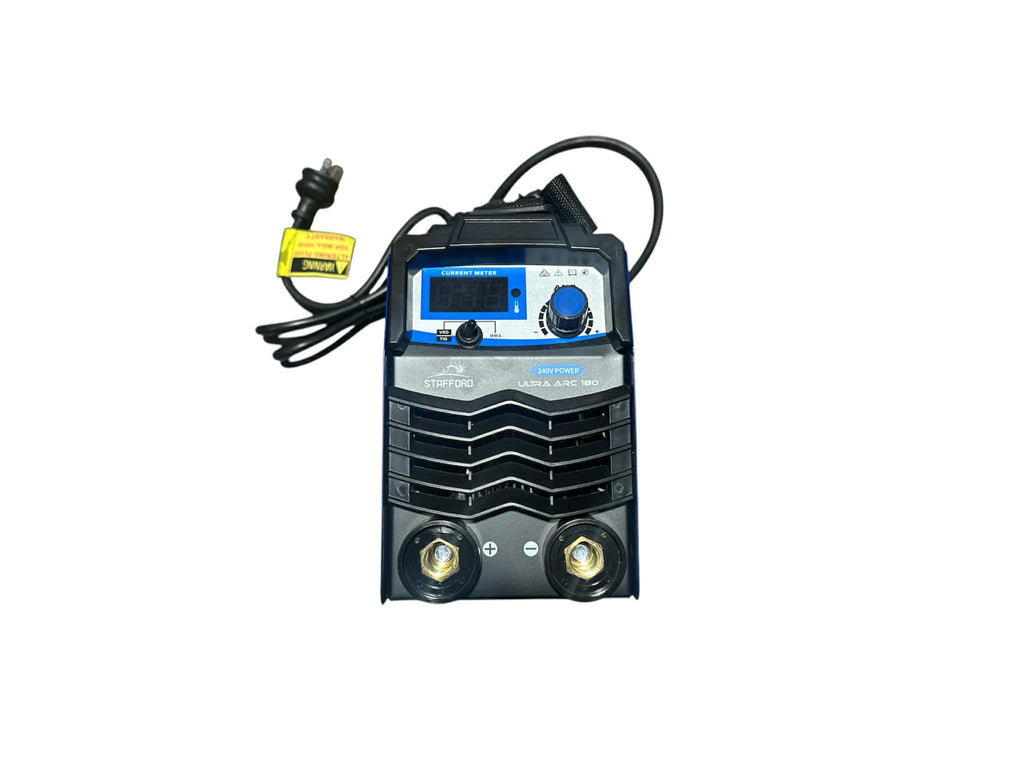

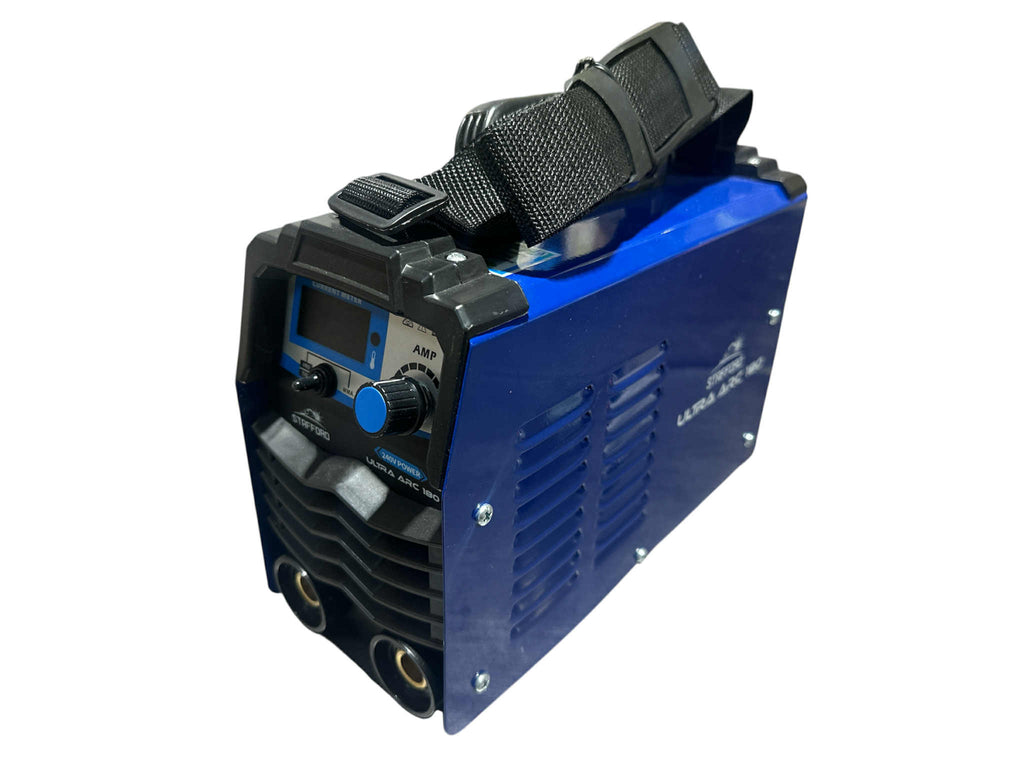

STAFFORD ULTRA ARC 180
STAFFORD ULTRA ARC 180 IS AN IGBT INVERTER STICK (MMA) WELDING MACHINE FOR STICK AND TIG PROCESSES.
THE STAFFORD ULTRA ARC 180 PACKAGE IS A PROFESSIONAL, LIGHT WEIGHT ARC WELDING PACKAGE WHICH WILL SATISFY MOST DOMESTIC, LIGHT INDUSTRIAL APPLICATIONS, AND RURAL USES.
PRODUCT FEATURES
HOT START
ANTI-STICK
VRD
ARC FORCE
IGBT INVERTER TECHNOLOGY
20-180amp WELDING OUTPUT
DC MMA / DC TIG WELDING
4m ARC LEAD - 4m EARTH LEAD
SPECIFICATIONS
Input Voltage (V) AC240V
Frequency (Hz) 50
Rated Input Current (A) 27.2
Output Current Range (A) 20-180amp
Rated Duty Cycle (%) 35 @ 180amp
Power Factor 0.89
Efficiency (%) 83
I 1eff = 13.1
I 1max =34A
Insulation Grade F
Housing Protection Grade IP21S
Weight (KGS) 5
Fully Compliant to AS 60974-1
FOR INDUSTRIAL USE
3 YEAR WARRANTY
