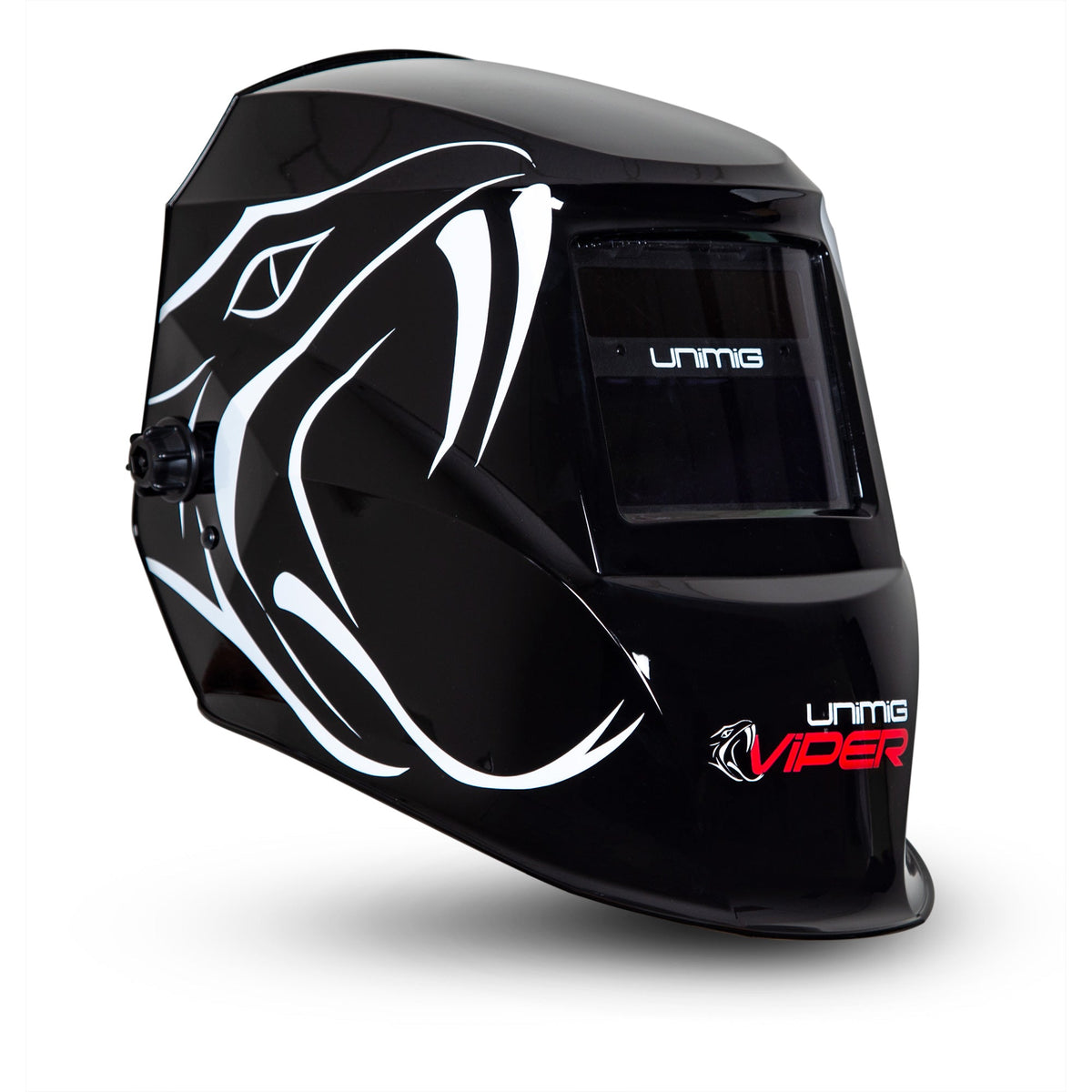

The VIPER Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. Fitted with 2 arc sensors, the VIPER Welding Helmet features 9-13 Shade control as well as GRIND mode for use when grinding. It is suitable for MIG, TIG (Minimum 5A) and STICK welding, as well as plasma cutting.

The VIPER Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.

96x42mm

VIEW SIZE.

9-13

SHADE CONTROL.

2 Arc Sensors

CONSTANTLY MONITOR THE ARC.

GRIND MODE

FOR USE WHEN GRINDING.

ELITEVISION™ Lens Technology

ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.

HELMET SPECIFICATIONS

FILTER DIMENSIONS

110x90x9mm

VIEW SIZE

96x42mm

ARC SENSORS

2

CLASSIFICATION

1/1/1/2

LIGHT STATE

4

DARK STATE

9-13

UV/IR PROTECTION

DIN15

TIME FROM LIGHT TO DARK

0.1ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (Internal)

POWER SUPPLY

Solar Cells

WARRANTY

2 Years

OPERATING TEMPERATURE

-10˚C to 65˚C

STORAGE TEMPERATURE

-20˚C to 85˚C

SHADE CONTROL

Yes (External)

GRIND MODE

Yes (External)

STANDARDS

CE, ANSI , CSA, AS/NZS

REPLACABLE PARTS

OUTER LENS

PUMMBOP

INNER LENS

PUMIP

HARNESS

UMHR

SWEAT BAND

UMSB

FILTER

XA-1001F(G)

Here you’ll find the latest manuals, guides & product/parts information.

VIPER Welding Helmet Manual

UNIMIG is pleased to offer a 2 year warranty on all Auto Darkening Welding Helmets. UNIMIG offers warranty across Australia with four UNIMIG service area’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind.
