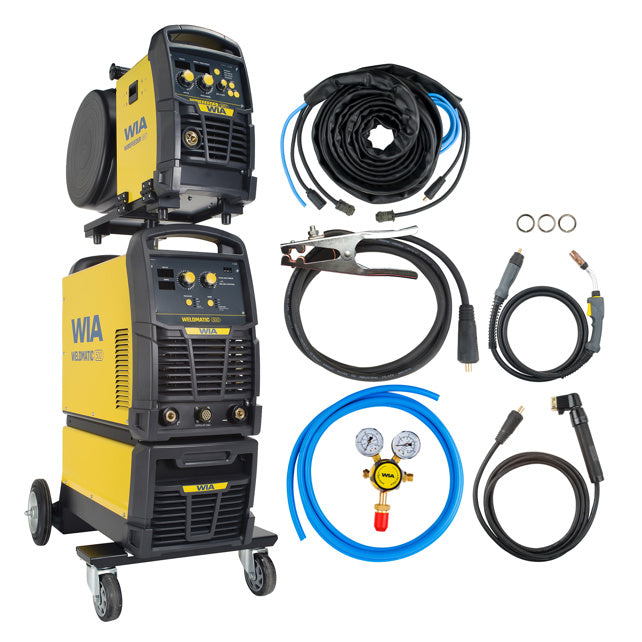

Weldmatic 500
The Most Powerful WIA MIG Welder
The Weldmatic 500 is a powerful and robust multi-process machine built to perform for professional fabrication applications. Capable of MIG, TIG, and Stick welding, it offers optimal weld characteristics that provide high quality results. Featuring Digital Volt and Amp meters, the 500 allows for easy and precise set up by retaining last weld information.
Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 500 offers reliability and performance that’s second to none.
Processes: Stick, MIG, TIG
- 500 A three phase MIG, Stick & TIG welder
- 500 A at 40 V 60% Duty Cycle
- Digital Meters - Easy to read and easy to adjust parameters
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Spot Timer - Provides short weld times for repetitive spot welds
- Creep Mode - Provides slow wire speed until weld starts - ideal for aluminum starts
- Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- VRD (Voltage Reduction Device)
- IP21S rated
- Generator compatible - 35 kVa
Machine Specification
Primary Voltage
380/415 VAC - 50/60Hz
Rated Primary Current
32 Amps
Max Primary Current
40 Amps
Recommended Generator Power
35 kVa
Supply Plug
32 Amp
Weldable Materials
Steel, Stainless Steel, Aluminium
Stick Specification
Current Range
25A/21V-500A/40V
Rated Output @ 40°C (10min)
500A/40V @ 60%
387A/35.5V @ 100%
MIG Specification
Output Range
30A/15.5V-500A/39V
Rated Output @ 40°C (10min)
500A/39V @ 60%
387A/33.4V @ 100%
Wire Size Range
0.6/0.8/0.9/1.2/1.6mm
Material Thickness Range
Welds up to 12mm+ steel plate, single pass
TIG Specification
Current Range
15A/10.6V-500A/30V
Rated Output @ 40°C (10min)
500A/30V @ 60%
387A/25.5V @ 100%
